NineSwiss Modular Head Turning Tool - DM Series

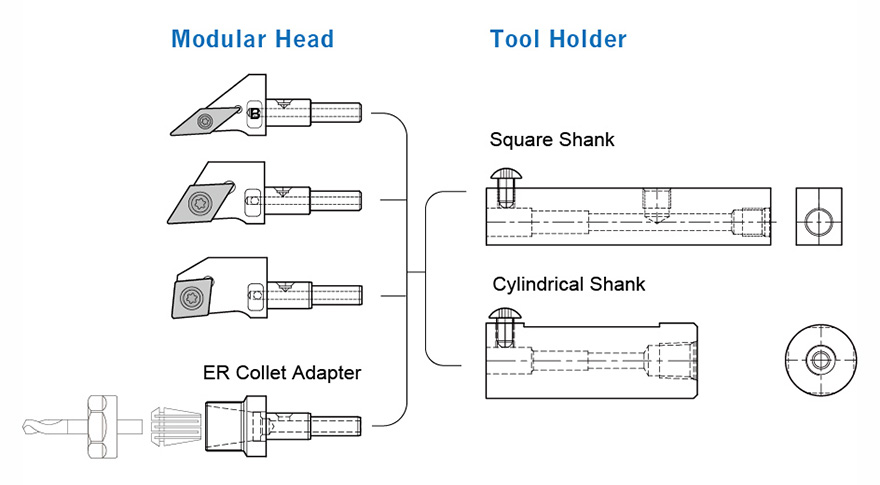

NineSwiss DM series is a modular turning tool system provided by Nine9, specifically designed for Swiss-type automatic lathes and small lathes. Its modular design ensures high repeatability for quick and easy tool changes, saving tool change time and machine downtime.

[ Freature ]
Quick Change System

• • The modular design ensures high repeatability, allowing the head to be exchanged in just 15 seconds.
• • No more tool length reset after changing the modular head, saving tool change time and machine downtime.

• • The head is located on a V-block and an extended shaft to provide rigidity and repeatability.
• • Its cutting performance matches or surpasses that of solid-type indexable turning tools.
• • Tool length and the height of the cutting edge are consistently maintained while changing modular heads, with a high position repeatability of ±0.02 mm.

• • The metal-to-metal contact between the head and holder well seals the entire system, combined with the extended shaft and sealed glue, which withstands the high coolant pressure up to 140 bar.
