30° / 45° / 60° / 90° Engraving Tools

Nine9 carbide engraving cutter

30° / 45° / 60° / 90° engraving tool with indexable carbide insert, excellent repeatability, reducing your presetting time, no resharpening required.

• Nine9 V045 & V060 carbide insert of high positive rake angle allows this indexable engraving tool to cut faster and last longer than the engravers you have previously used and no burr.

Some of our most popular Engraving Tools include:
• X060 Engraving Tools Series:
+ fine engraving 0.2mm bottom width with narrow angle 30° / 45° / 60°.
+ One holder supports the entire X060 series of engraving inserts.
+ Also using for deburring tool.
+ Suitable for engraving all types of materials, such as plastic, non-ferrous metal, aluminum, copper, carbon steel and stainless steel.

• V045 / V060 Engraving Tools Series:
+ Suitable for engraving all types of materials, such as plastic, non-ferrous metal, aluminum, copper, carbon steel and stainless steel and titanium.
+ Depth of per cutting Ap up to 0.8mm for carbon steel, 0.5mm for stainless steel.

• W060 Engraving Tools Series:
+ Limited design, simply for thin or light engraving, used on engraving machine.

• SW Engraving Tools Series:
+ 60° and 90° Engraving cutter. Each insert has 4 cutting edges.
+ The insert can be used for small diameter spotting.

[ NEW ] ER type Engraving cutter -
   ideal solution for BT30, driven tools, tapping and turning center.
+ An integrated ER taper-shank cutter, eliminate assembly tolerance.
+ Easy and simple assembly.
+ Excellent repeatability, saving set-up time.
>> click link for more information.
Ergo ER type Engraving cutter

- Very sharp cutting edge and cut very freely.
- High positive rake angle inserts suitable for various materials, .
ex : plastic, non-ferrous metal, aluminum, copper, carbon steel & stainless steel..
- High quality engraving! Produce without burrs, excellent in copper, aluminum & stainless steel. .
- High speed, High feed rate! Up to 40,000 r.p.m..
- Efficient repeatability! Peripherally ground & multi-side grinding insert. .
- Time saving! No need to reset after changing insert or cutting edge, no re-sharpen required..
- Machining Wmin:0.45mm, Tmax : 2mm, best replaces ball nose end mill, first choice for engraving.


Comparison

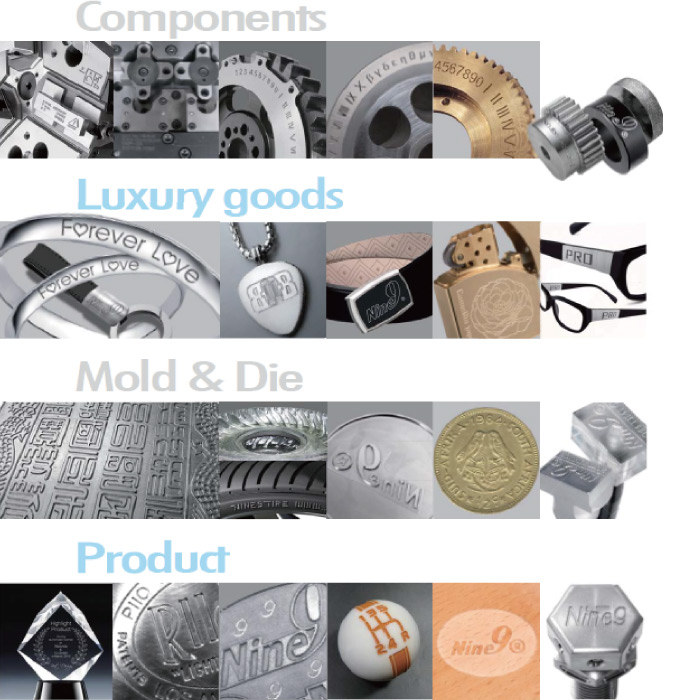

Application

- Universal for marking number and almost any character.
