Chamfering Tool 308LA Series

- 99616-16-18: For front chamfering.
- 99616-16-28: Back chamfering and side grooving in one tool.
- Produces smooth and excellent surface finish on workpiece.
- Each insert has 4 cutting edges.
- Carbide insert can stand very long tool life.

Inquiry

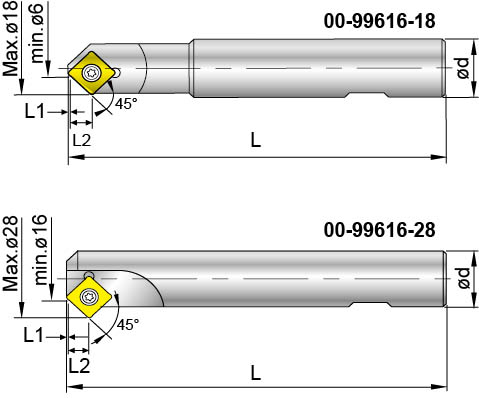

Holder

- 00-99616-16-18: For front chamfering.
- 00-99616-16-28: Back chamfering and side grooving in one tool.

Nine9 corner rounding_99616-16-30R

Drag left or right for more information.

Part No	Chamfering	Ød	L1	L2	L
99616-18	Ø6~Ø18mm (0.236"~0.709")	20mm (0.787")	1.15mm (0.045")	7.55mm (0.297")	120mm (4.724")	1
99616-28	Ø16~Ø18mm (0.630"~ 1.102")	20mm (0.787")	1.15mm (0.045")	7.55mm (0.297")	120mm (4.724")	1

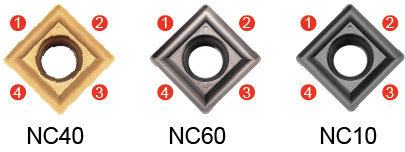

Insert

-NC40 : General purpose, universal grade for all unhardened steel.
-NC10 : Universal grade for Al, Al-alloy, non-ferrous metal, cast iron and stainless steel.
-NC60 : Cermet insert, for hardened steel up to HRC 56.
-Each insert has 4 cutting edges.
