MCC Deburring Mill

  • MCC Deburring Mill

With a suite of Nine9 Deburring and chamfering tools to match every scenario and material, no matter front and back deburring or contour chamfering, all can be finished to exacting standards in a fast and simple manner –upgrading your machining process without manpower shortage, negating precision and accuracy.

Feature

  • • MCC deburring mill have optimum 6 flutes design for higher feed rate, the smallest insert dia. is 5mm.
    • Specialized on narrow space below 10mm by indexable insert.
    • Patented Nine9 clamping system to provide high precision and accurate position. Fully ground insert geometry for burr free.
    • Deburring and thread mills carbide inserts can fit on the same holder. Saving your tool inventory and cost, reduces carbon emission.
    • Excellent deburring surface finishing.
  • • Visit Chamfer Mill for more option.
Inquiry

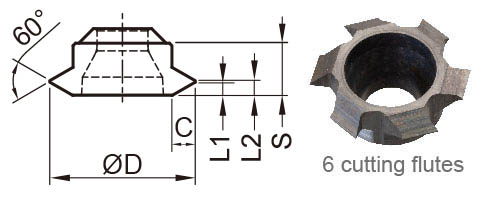

60° Deburring
• For front and back deburring.

deburring mill _application

• NC2032:
TiAlN coating provides longer tool life.
For all kinds of steel from < HRC60, carbon steel, alloy steel and cast iron.

• XP9000:
High positive geometry and sharp edge produces excellent surface finish.
For non-ferrous material such as aluminum, brass, copper and soft material.


deburring mill insert type 60 degree

● See catalog for detailed specifications, please.
Drag left or right for more information.
Size Part No Coating ØD
±0.025		 S
±0.025		 C L1 L2
CR05 R06005-05010-32 TiAlN 5.0
(0.197")		 2.0
(0.079")		 0.40
(0.016")		 0.35
(0.014")		 0.45
(0.018")
CR05 R06005-05010-00 Uncoated 5.0
(0.197")		 2.0
(0.079")		 0.40
(0.016")		 0.35
(0.014")		 0.45
(0.018")
CR07 R06007-06810-32 TiAlN 6.8
(0.268")		 2.35
(0.093")		 0.50
(0.020")		 0.40
(0.016")		 0.50
(0.020")
CR07 R06007-06810-00 Uncoated 6.8
(0.268")		 2.35
(0.093")		 0.50
(0.020")		 0.40
(0.016")		 0.50
(0.020")
CR10 R06010-08510-32 TiAlN 8.5
(0.335")		 3.60
(0.142")		 0.65
(0.026")		 0.49
(0.019")		 0.59
(0.023")
CR10 R06010-08510-00 Uncoated 8.5
(0.335")		 3.60
(0.142")		 0.65
(0.026")		 0.49
(0.019")		 0.59
(0.023")
CR10 R06010-10010-32 TiAlN 10.0
(0.394")		 3.60
(0.142")		 1.20
(0.047")		 0.90
(0.035")		 1.00
(0.039")
CR10 R06010-10010-00 Uncoated 10.0
(0.394")		 3.60
(0.142")		 1.20
(0.047")		 0.90
(0.035")		 1.00
(0.039")

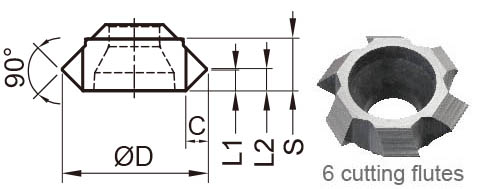

90° Deburring
Drag left or right for more information.
Size Part No Coating ØD
±0.025		 S
±0.025		 C L1 L2
CR05 R09005-04820-32 TiAlN 4.8
(0.189")		 2.0
(0.079")		 0.30
((0.012")		 0.50
(0.020")		 0.70
(0.028")
CR05 R09005-04820-00 Uncoated 4.8
(0.189")		 2.0
(0.079")		 0.30
((0.012")		 0.50
(0.020")		 0.70
(0.028")
CR05 R09005-05060-32 TiAlN 5.0
(0.197")		 2.0
(0.079")		 0.40
(0.016")		 0.60
(0.024")		 1.20
(0.047")
CR05 R09005-05060-00 Uncoated 5.0
(0.197")		 2.0
(0.079")		 0.40
(0.016")		 0.60
(0.024")		 1.20
(0.047")
CR05 R09005-05320-32 TiAlN 5.3
(0.209)		 2.0
(0.079")		 0.45
(0.018")		 0.65
(0.026")		 0.85
(0.033")
CR05 R09005-05320-00 Uncoated 5.3
(0.209)		 2.0
(0.079")		 0.45
(0.018")		 0.65
(0.026")		 0.85
(0.033")
CR05 R09005-05520-32 TiAlN 5.5
(0.217")		 2.0
(0.079")		 0.55
(0.022")		 0.75
(0.030")		 0.95
(0.037")
CR05 R09005-05520-00 Uncoated 5.5
(0.217")		 2.0
(0.079")		 0.55
(0.022")		 0.75
(0.030")		 0.95
(0.037")
CR07 R09007-07020-32 TiAlN 7.0
(0.276")		 2.35
(0.093")		 0.7
(0.028")		 1.0
(0.039")		 1.2
(0.047")
CR07 R09007-07020-00 Uncoated 7.0
(0.276")		 2.35
(0.093")		 0.7
(0.028")		 1.0
(0.039")		 1.2
(0.047")
CR10 R09010-10010-32 TiAlN 10
(0.394")		 3.60
(0.142")		 1.20
(0.047")		 1.45
(0.057")		 1.55
(0.061")
CR10 R09010-10010-00 Uncoated 10
(0.394")		 3.60
(0.142")		 1.20
(0.047")		 1.45
(0.057")		 1.55
(0.061")
CR06 R09006-05820-32 TiAlN 5.8
(0.228")		 2.4
(0.094")		 0.55
(0.022")		 0.75
(0.030")		 0.95
(0.037")
CR06 R09006-05820-00 Uncoated 5.8
(0.228")		 2.4
(0.094")		 0.55
(0.022")		 0.75
(0.030")		 0.95
(0.037")
CR06 R09006-06020-32 TiAlN 6.0
(0.236")		 2.4
(0.094")		 0.65
(0.026")		 0.85
(0.033")		 1.05
(0.041")
CR06 R09006-06020-00 Uncoated 6.0
(0.236")		 2.4
(0.094")		 0.65
(0.026")		 0.85
(0.033")		 1.05
(0.041")
Holder
  • • Various OAL holders for your choice.
  • • Carbide shank holders good for fine finish.
  • • Various MCC inserts can fit on the same holder.
  •
  •
  • deburring and threading mill_holder
  •
  •
Drag left or right for more information.
Size Part No Shank Ød Ød1 L1 L2 L
CR05 99626-CR05-06-039 Steel 6
(0.236")		 3.5
(0.138")		 4
(0.157")		 33
(1.299")		 39
(1.535")
CR05 99626-CR05-06-045 Steel 6
(0.236")		 3.5
(0.138")		 10
(0.394")		 33
(1.299")		 45
(1.772")
CR05 99626-CR05-08-076 Steel 8
(0.315")		 3.5
(0.138")		 10
(0.394")		 60
(2.362")		 74
(2.913")
CR05 99626-CR05-05-043 Steel 5
(0.197")		 3.5
(0.138")		 16
(0.630")		 24.25
(0.955")		 41
(1.614")
CR05 99626-CR05-06-051 Steel 6
(0.236")		 3.5
(0.138")		 16
(0.630")		 33
(1.299")		 51
(2.008")
CR05 99626-CR05-06-051W Carbide 6
(0.236")		 3.5
(0.138")		 16
(0.630")		 33
(1.299")		 51
(2.008")
CR07 99626-CR07-06-041 Steel 6
(0.236")		 5.0
(0.197")		 6.0
(0.236")		 33
(1.299")		 41
(1.614")
CR07 99626-CR07-08-078 Steel 8
(0.315")		 5.0
(0.197")		 13.65
(0.537")		 60
(2.362")		 75.65
(2.978")
CR07 99626-CR07-06-049 Steel 6
(0.236")		 5.0
(0.197")		 14
(0.551")		 33
(1.299")		 49
(1.929")
CR07 99626-CR07-06-052 Steel 6
(0.236")		 5.0
(0.197")		 21.65
(0.852")		 27.5
(1.083")		 49.65
(1.955")
CR07 99626-CR07-06-057 Steel 6
(0.236")		 5.0
(0.197")		 22
(0.866")		 33
(1.299")		 57
(2.244")
CR07 99626-CR07-06-057W Carbide 6
(0.236")		 5.0
(0.197")		 22
(0.866")		 33
(1.299")		 57
(2.244")
CR10 99626-CR10-08-049 Steel 8
(0.315")		 6.8
(0.268")		 7
(0.276")		 40
(1.575")		 49
(1.929")
CR10 99626-CR10-08-082 Steel 8
(0.315")		 6.8
(0.268")		 16.4
(0.646")		 60
(2.362")		 78.4
(3.087")
CR10 99626-CR10-08-059 Steel 8
(0.315")		 6.8
(0.268")		 17
(0.669")		 40
(1.575")		 59
(2.323")
CR10 99626-CR10-08-069 Steel 8
(0.315")		 6.8
(0.268")		 27
(1.063")		 40
(1.575")		 69
(2.717")
CR10 99626-CR10-08-084W Carbide 8
(0.315")		 6.8
(0.268")		 27
(1.063")		 55
(2.165")		 84
(3.307")
