Ergo 60 deg & 90 deg Deburring Tools

Achieve high speed and high feed deburring and chamfering on swiss type automatic and CNC Turning Centers.

● Optimize the rigidity and quick change system for adapting on small working area. Ideal solution for BT30, driven tools, tapping and turning center.
● Retain exceptional positional accuracy of the deburring depth and diameter.
● TiAlN coated carbide insert can stand very long life.
● Suitable for all kinds of steel from < 40 HRC, carbon steel, alloy steel, cast iron, aluminum and non-ferrous metal.
● Using same tool holder of X060 engraving tools.

♥ Ergo Sets ~ For your first ordering ~
Contents: Deburring basic holder x 1, ER16 nut x 1, pin x1, L Key x 1 and insert key x 1. (The insert is not included.)

Inquiry

Holder

● With Balance grade: G4.0 20000 r.p.m.
● Also using for X060 Engraving tool.
60 & 90 deg deburring tools for collet chuck

Drag left or right for more information.

Part No	Insert Size	L
99816-X060	X060...	22mm (0.866")

Set of Ergo Nut

* Ergo Nut, High Strength Ergo Pin and L-Key are included.

Drag left or right for more information.

Part No	Ød	High Strength Ergo Pin	L-Key
99816-M19S	25mm (0.984")	NS-50025	NK-LW3
99816-M22S	28mm (1.102")	NS-50028	NK-LW3

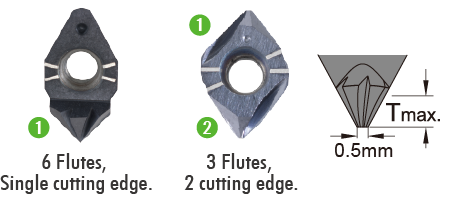

Insert

● Ideal for fine hole deburring.
● TiAlN coated carbide insert can stand very long life.
● Also using for X060 Engraving Tool.
>> Link here for more information of engraving tool.

Drag left or right for more information.

Type	Angle	Part No	Coating	Grade	Tmax.	Tmin.	Workpiece material
6 Flutes	60°	X060A60T6	TiAlN	NC2032	1.9mm (0.0075")	0.1mm (0.004")	PMK
6 Flutes	90°	X060A90T6	TiAlN	NC2032	2mm (0.079”)	0.5mm (0.02")	PMK
3 Flutes	60°	X060A60T3	TiAlN	NC2032	1.0mm (0.040")	0.1mm (0.004")	PMK
3 Flutes	60°	X060A60T3	-	XP9001	1.0mm (0.040")	0.1mm (0.004")	N
3 Flutes	90°	X060A90T3	TiAlN	NC2032	1.0mm (0.040")	0.1mm (0.004")	PMK
3 Flutes	90°	X060A90T3	-	XP9001	1.0mm (0.040")	0.1mm (0.004")	N
